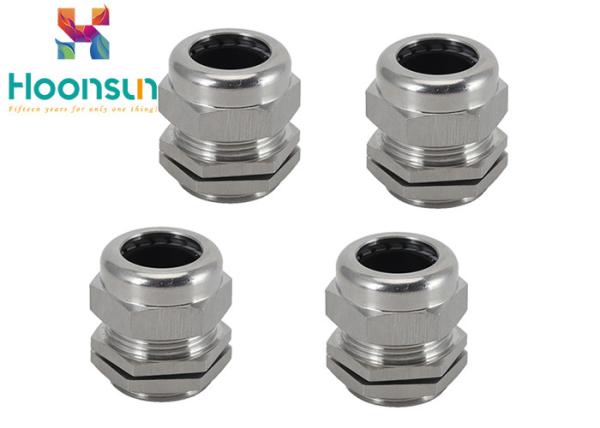

G1 / 2 Thread Waterproof 304 Stainless Steel Cable Connector IP68 Cable Gland
product details
This product consists of tight nut, clamping claw, seal, main body, O ring and nut. The material of compacting nut, main body and nut is stainless steel SS304/316L.
The material of clamping claw is nylon plastic PA66, UL94-V2, waterproof ring, and seal material are NBR and silicone rubber.
This stainless steel cable joint has a waterproof grade of IP68. It is certified by the European Union CE, RoHS certified, high quality, high hardness, no pollution, no rust.
Product certification
European CE, ROHS,REACH certification
precision thread, tightly connected
seal rubber ring, effective seal
protection degree up to IP68
Special clamping claws and clamping rings are sealed and fastened together with the tightening nut, thus clamping the cable in a large range.Strong tensile strength, waterproof, dustproof, salt - resistant, acid and alkali - resistant, alcohol, oil, ester and other common solvents.
Application occasions: offshore operations, mine machinery, chemical equipment and other harsh working occasions.
|
Item
|
Range
|
GL
|
H
|
Thread O.D.
AG mm
|
Spanner size
|
Code
|
| G1/4 |
3-6.5 |
7 |
19 |
13.1 |
14 |
HX-SSG1/4 |
| G3/8 |
4-8 |
8 |
21 |
16.6 |
17/20 |
HX-SSG3/8 |
| G1/2 |
6-12 |
8 |
22 |
20.9 |
22/23 |
HX-SSG1/2 |
| G3/4 |
13-18 |
9 |
25 |
26.4 |
30 |
HX-SSG3/4 |
| G1 |
18-25 |
10 |
29 |
32.2 |
40 |
HX-SSG1/2 |
| G1-1/4 |
25-33 |
11 |
35 |
41.9 |
50 |
HX-SSG1-1/4 |
| G1-1/2 |
32-38 |
12 |
37 |
47.8 |
57/55 |
HX-SSG1-1/2 |
| G2 |
37-44 |
14 |
38 |
59.6 |
65 |
HX-SSPG2 |
| G2-1/2 |
42-52 |
16 |
42 |
75.1 |
78 |
HX-SSG2-1/2 |
| G3 |
65-70 |
18 |
45 |
88 |
94 |
HX-SSG3 |
Characteristics
- strong antioxidation, no rust
- do not release harmful substances, pollution-free
- the use of stainless steel, high hardness
- the grade of waterproof is IP68
- a temperature of 120 degrees Celsius in a short period of time in a static environment.
- product performance: waterproof, dust-proof, corrosion resistant and non polluting. It has the characteristics of strong anti stamping, isolation and explosion-proof.
- The products are suitable for cable connection of circuit, electric box and transportation equipment, industrial machinery and equipment, wind energy industry, solar energy industry and so on.
- The installation is very simple. Just insert the cable through the assembled gland and tighten the compression nut until the cable is fixed.
